TrueRC SINGULARITY 5.8

100/MMC 100/MMC2 100/RP- 100/SMA Choose variant
Not rated
TrueRC
Magnifier
C79E1245 4B4B 4322 A80F 091CE8A60A0D scaled e1630338382620
  • 1 of 2
A2858081 349D 4701 ADF5 BE7056A3A1DB scaled e1632505637758

TrueRC SINGULARITY 5.8 is our most advanced antenna. We pushed miniaturization further than ever before, yet managed to push performances a notch higher still.


  • $24,19 incl. VAT
  • Choose variant (>5 pcs) Objednáno (>5 pcs) ObjednánoOn orderOn order
$19,99
  • Variant

Parameters

Category: VTX Antennas
Polarization: RHCP
Connector & Cable: SMA 120mm
Print
Garance doručení
nepoškozeného zboží
Přes 3000 výdejních míst
po celé ČR


Description

 Specifications:

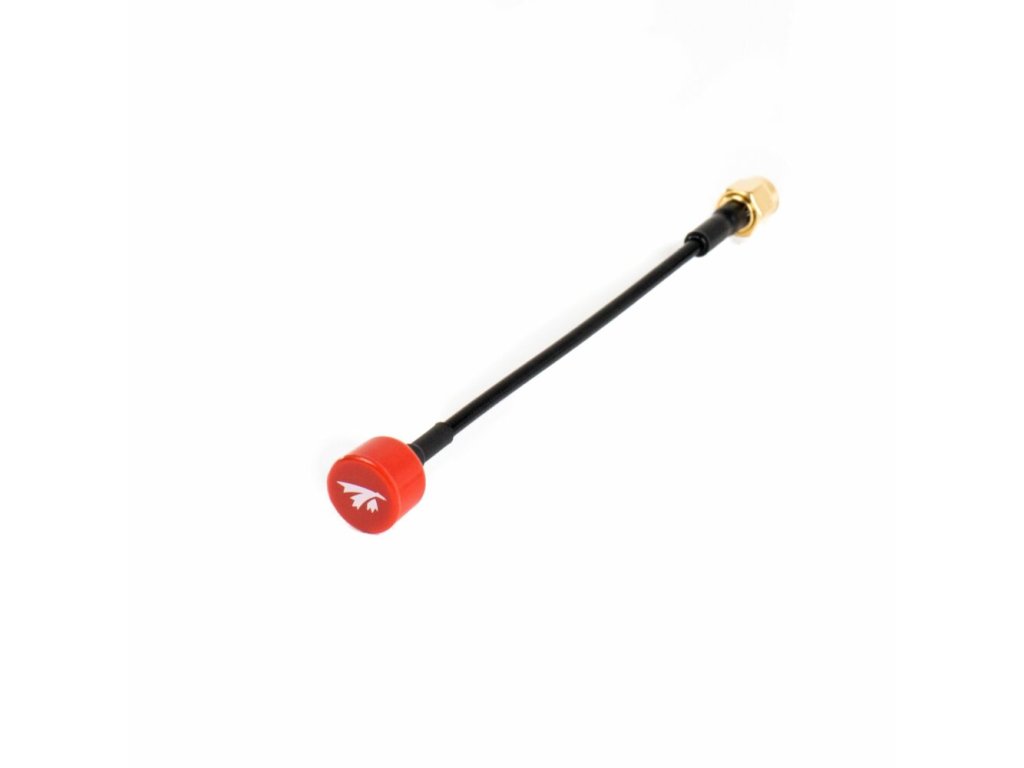

TrueRC SINGULARITY 5.8

Gain 1.9dbic
Polarization RHCP or LHCP
Cross-Polar Rejection -15 to -30dB (1.9%)/
Bandwidth 5.6GHz-6.0GHz
Radiation Efficiency 99%
SWR <=1.5:1
Weight 1.03g to 3.55g depending on configuration
Dimensions(head):  11.8mm dia. x 8.2mm height (PDF)
Length Vary with cable option
Cable RG405, RG178, 1.13mm

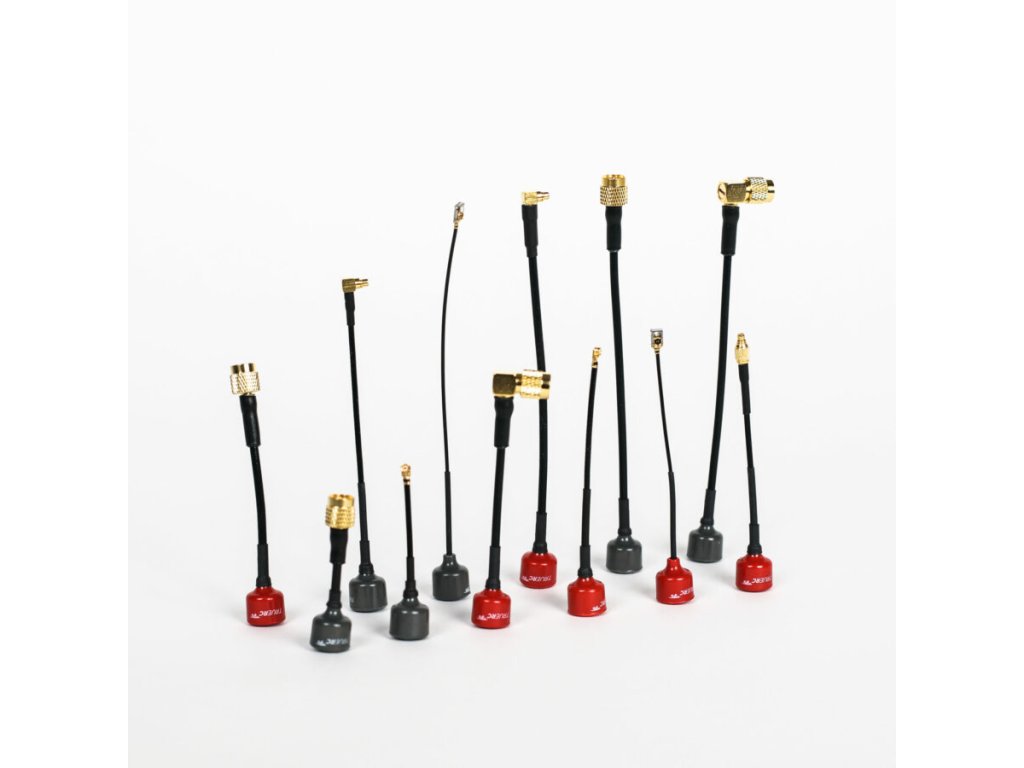

Connector True-SMA/90, MMCX/90, U.FL



Useful print!

US. Pat. 10,804,618

Can. Pat. 2968566
