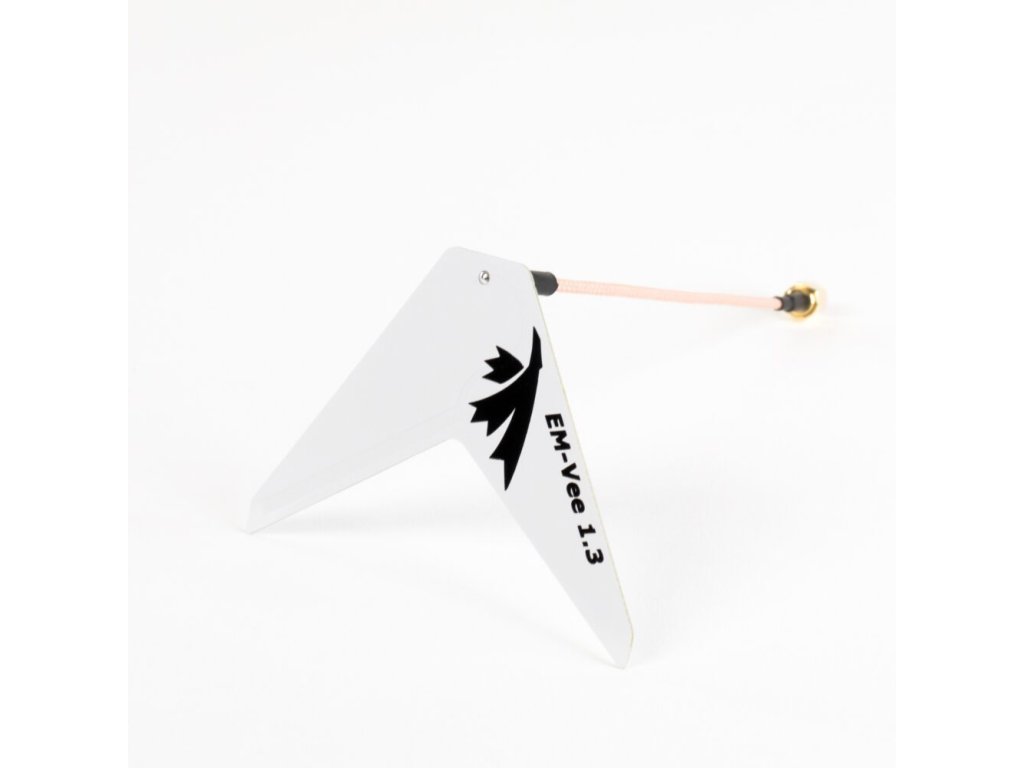

TrueRC EM-VEE 1.3

The TrueRC EM-VEE 1.3 is more than just an antenna – it’s a tool to guarantee reliable, clear transmission, whether you're racing or flying long-distance FPV. The V-shape design allows for a wider radiation angle and reduces nulls, especially towards the bottom, giving you more consistent signal coverage.

If you want to stay connected with your drone, even during long and challenging flights, the TrueRC EM-VEE 1.3 antenna is the right choice.

Key Benefits:

• High Performance: 1.7 dBi gain for a strong and stable signal in the 1240–1360 MHz frequency range.
• V-shape for better radiation: Reduced null zones for reliable transmission even when the antenna's position changes.
• SMA Connector: Universally compatible for a wide range of devices.
• Compact & Lightweight: 86mm x 61mm dimensions and only 0.010 kg in weight, perfect for FPV setups where every gram counts.
• 150mm Cable: Ideal cable length for easy integration into your system.

Specifications:

• Model: TrueRC EM-VEE 1.3
• Frequency Range: 1240–1360 MHz
• Gain: 1.7 dBi
• Connector: SMA
• Dimensions: 86mm x 61mm (150mm cable)
• Weight: 0.010 kg
• Packaging Dimensions: 20 x 12.5 x 8 cm

TrueRC EM-VEE 1.3

The Vee is a sort of dipole bent to form a “V” of more or less angle. It yield a more uniform radiation pattern with nulls on top and bottom that aren’t as bad as the regular straight dipole.  We pushed it a little further with more pronounced angle that reduce nulls further, especially toward the bottom (under the logo).

The Vee is a sort of dipole bent to form a “V” of more or less angle.
