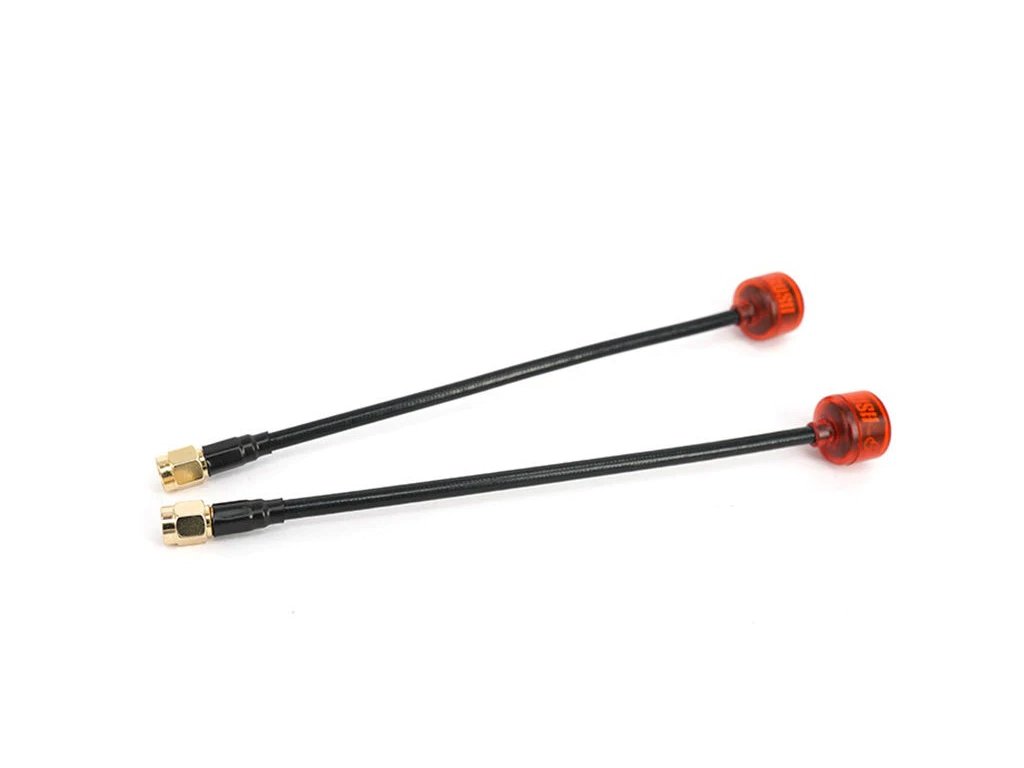

RUSHFPV CHERRY ANTENNA SMA

POLARIZATION    RHSP

LENGTH UTRA Extended

Total Length: 160 mm

Cable length:145mm


  • $12,83 incl. VAT $10,60 / 1 pcs
  • On order
$10,60

Parameters

Category: VTX Antennas
Weight: 0.01 kg
Print
Garance doručení
nepoškozeného zboží
Přes 3000 výdejních míst
po celé ČR


Description

Specifications:

RUSHFPV CHERRY ANTENNA SMA

Model RUSHFPV CHERRY ANTENNA SMA
Material PC + ABS
Weight 10g
Antenna length 105mm
Center frequency 5.8 GHz
Gain 1.2 Dbi
Bandwidth 400 MHz (5.6-6.0 GHz)
Compliance VSWR 1.4max-1.1min (at center frequency)
Axial ratio about 1.0
Center frequency 5800 MHz
Efficiency 98%
Polarization RHCP, LHCP
Color red
Connector SMA
