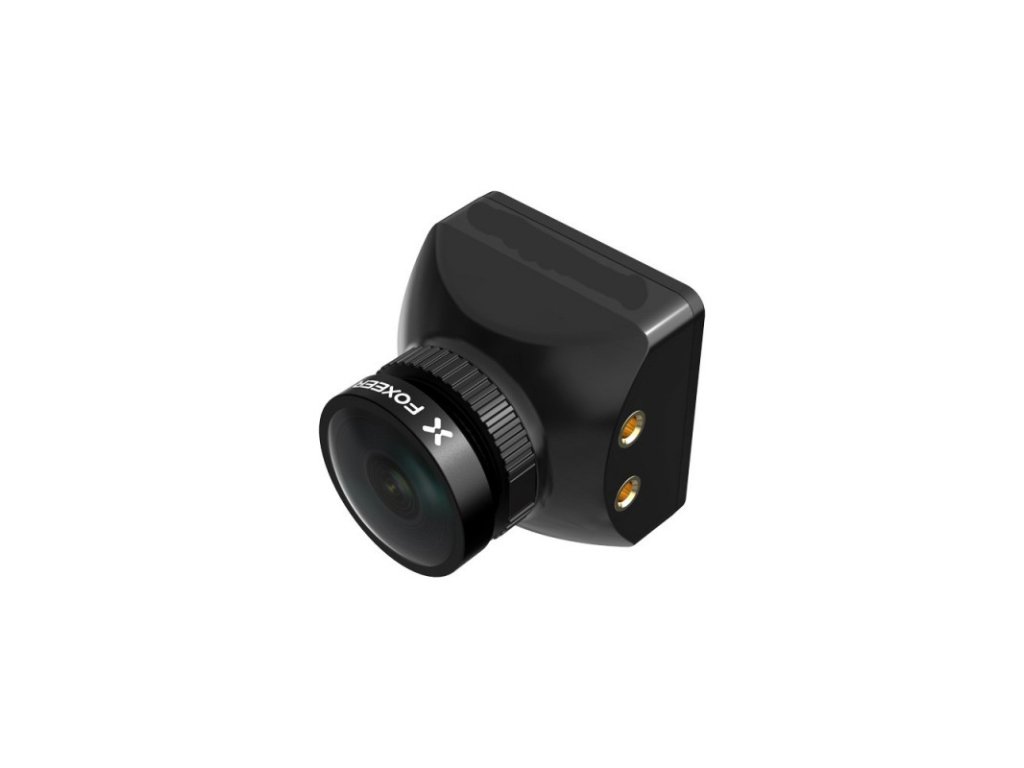

Foxeer Mini Night Cat 3 - Compact IR Night Vision FPV Camera 1200TVL 0.00001Lux with 850nm IR Light

94
Not rated
  • 1 of 3

Master the night sky with the Foxeer Mini Night Cat 3 – the latest IR night vision camera that provides unmatched visibility in total darkness. With a minimum illumination of 0.00001Lux and 850nm IR light compatibility, this camera is the perfect solution for pilots who want to capture every detail, even when there’s no light around.

Attention: Only works at night, all purple at daytime

https://youtu.be/5hiP2QKBvis


  • $64,01 incl. VAT
  • On order
$52,90
Category: FPV Cameras
Weight: 0.012 kg
Garance doručení
nepoškozeného zboží
Přes 3000 výdejních míst
po celé ČR


Equipped with a Sony 1/3" CMOS sensor and 2.1mm M12 F1.4 lens, this camera delivers a high resolution of 1200TVL, ensuring clear and sharp footage no matter the lighting conditions. Whether flying in daylight or at night with IR light, the Foxeer Mini Night Cat 3 provides rock-solid stability and outstanding recording quality.

The camera features a wide dynamic range (WDR 100dB) for optimal performance in challenging light situations and 3DNR for eliminating noise, so you can see every detail even when the light is scarce. With switchable 4:3 and 16:9 aspect ratios, it adapts to your specific FPV setup needs.

If you’re looking for a compact, powerful FPV camera that lets you fly without worrying about visibility, the Foxeer Mini Night Cat 3 is the ideal choice.

Key Benefits:

  • Incredible Night Vision: 0.00001Lux minimum illumination and 850nm IR light for crystal-clear footage in complete darkness.
  • 1200TVL resolution with Sony 1/3" CMOS sensor for sharp, detailed imagery day or night.
  • Flexible aspect ratio switching between 4:3 and 16:9 for versatility in your FPV footage.
  • 100dB WDR for optimal recording in contrasting lighting conditions.
  • 3DNR (3D noise reduction) for clean and sharp footage even in low-light environments.
  • Lightweight and compact (12.2g), perfect for mini drones.
  • Multiple modes: Day/Night/Auto/Color/BW for customizable image settings.

Specifications:

  • Sensor: Sony 1/3" CMOS
  • IR Light: Compatible with 850nm IR Light
  • Filter: No filter
  • Aspect Ratio: 4:3 (default) / 16:9 (switchable)
  • TV System: PAL (default) / NTSC (switchable)
  • Resolution: 1200TVL
  • Lens: 2.1mm M12 F1.4 lens, optimized for low light
  • Field of View (FOV):
    • 4:3 FOV-H: 100° / FOV-D: 125°
    • 16:9 FOV-H: 100° / FOV-D: 115°
  • Shutter Speed: PAL 1/251/10000 sec; NTSC 1/301/10000 sec
  • Video Output: CVBS (Analog Signal)
  • Minimum Illumination: 0.00001Lux (super low light)
  • White Balance: Auto
  • DNR: 3DNR
  • WDR: 100dB
  • Modes: Day/Night/Auto/Color/BW
  • OSD: Voltage / Camera Title / Time
  • Input Voltage: 4.6V ~ 20V
  • Working Temperature: -10°C ~ +50°C
  • Working Humidity: 20% ~ 80%
  • Storage Temperature: -20°C ~ +70°C
  • Consumption: 95mA ±15% @ DC12V
  • Dimensions: 22mm x 22mm
  • Weight: 12.2g (excluding cable)
  • ODM/OEM Support: Yes

Foxeer_CAT3_Manual

Specifications

Product Name Foxeer Mini Night Cat 3 1200TVL 0.00001Lux IR Sensitive Night Vision Camera 850nm IR Light
Sensor Type Sony 1/3" CMOS Sensor
IR Light Works with 850nm IR Light
Scale 4:3(Default)/16:9 Switchable
Tv System PAL(Default)/NTSC Switchable
Resolution 1200TVL
Lens M12 2.1mm F1.4 Low Light Lens
Filter Without filter
FOV 4:3 FOV-H: 100° FOV-D:125°
16:9 FOV-H: 100° FOV-D:115°
Shutter Speed PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
Video Output CVBS Analog Signal
Minimum Illumination 0.00001Lux
White Balance Auto
DNR 3DNR
WDR 100dB
DAY/NIGHT EXT/Auto/Color/B&W
Flight OSD Voltage/Cam Title/Time
Input Voltage 4.6V~20V
Language ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA
Working Temperature -10°~50°C RH90% MAX
Working Humidity 20~80%
Storage Temperature -20°~70°C
Consumption 95mA±15% @ DC12V
Dimension 22*22mm
Weight 12.2g(Exclude cable)
ODM/OEM Support



Foxeer Mini Night Cat 3 1200TVL 0.00001Lux IR Sensitive Night Vision Camera 850nm IR LightFoxeer Mini Night Cat 3 1200TVL 0.00001Lux IR Sensitive Night Vision Camera 850nm IR Light1_1
