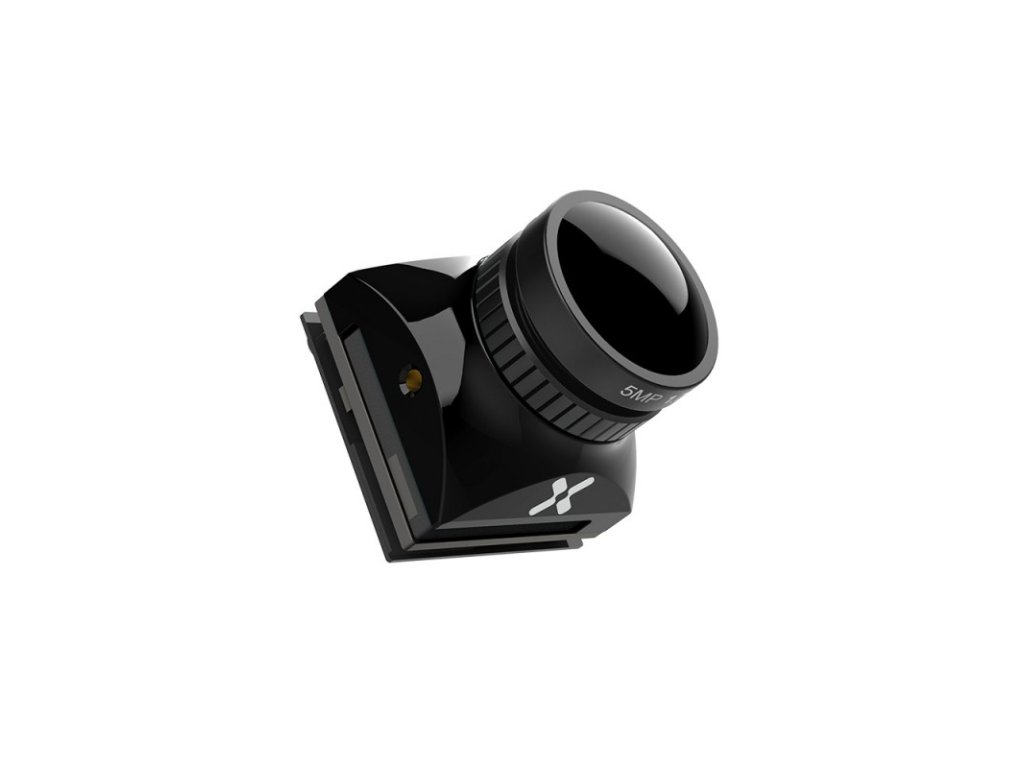

Foxeer Micro Night Cat 3 - IR Sensitive Night Vision FPV Camera 1200TVL with 850nm IR Light

Built with a Sony 1/3" CMOS sensor, the Foxeer Micro Night Cat 3 delivers stunning clarity and sharpness during low-light conditions. With WDR 100dB, you can expect perfect image quality in both bright and dark areas of the frame. The 2.1mm F1.4 lens is designed for superior performance in night-time flying, and the camera's 125° wide FOV ensures that you never miss any detail while soaring through the skies.

The Foxeer Micro Night Cat 3 offers flexible aspect ratio switching between 16:9 and 4:3, ensuring compatibility with your flying style. Whether you're shooting in full color or black & white, this camera adapts to your needs and excels in every situation. Plus, its lightweight design (10.7g) and compact size (19mm x 19mm) make it perfect for both mini and full-sized FPV drones.

Key Benefits:

• Unmatched Night Vision: With 850nm IR light and a minimum illumination of 0.00001Lux, the Foxeer Micro Night Cat 3 provides superior visibility in total darkness.
• 1200TVL resolution ensures a crisp, detailed image even in low-light conditions.
• WDR 100dB (Wide Dynamic Range) allows for perfect image quality in both bright and dark areas of the frame.
• Wide 125° FOV for a clear view of your surroundings, ensuring safe and smooth flights.
• Flexible aspect ratio switching between 16:9 and 4:3, allowing you to tailor the shot to your preferences.
• Auto white balance and 3DNR noise reduction for optimized image quality in all conditions.
• Lightweight and compact design – only 10.7g and 19mm x 19mm, ideal for mini drones and full FPV setups.

Specifications:

• Sensor: Sony 1/3" CMOS
• IR Light: Works with 850nm IR Light
• Filter: No filter
• Aspect Ratio: 4:3 (default) / 16:9 (switchable)
• TV System: PAL (default) / NTSC (switchable)
• Resolution: 1200TVL
• Lens: 2.1mm M12 F1.4 lens, optimized for low light
• Field of View (FOV):
  • 4:3 FOV-H: 100° / FOV-D: 125°
  • 16:9 FOV-H: 100° / FOV-D: 115°
• Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec

• Video Output: CVBS (Analog Signal)
• Minimum Illumination: 0.00001Lux (super low light)
• White Balance: Auto
• DNR: 3DNR
• WDR: 100dB
• Modes: Day/Night/Auto/Color/BW
• OSD: Voltage / Camera Title / Time
• Input Voltage: 4.6V ~ 20V
• Working Temperature: -10°C ~ +50°C
• Working Humidity: 20% ~ 80%
• Storage Temperature: -20°C ~ +70°C
• Consumption: 95mA ±15% @ DC12V
• Dimensions: 19mm x 19mm
• Weight: 10.7g (excluding cable)
• Color: Black
