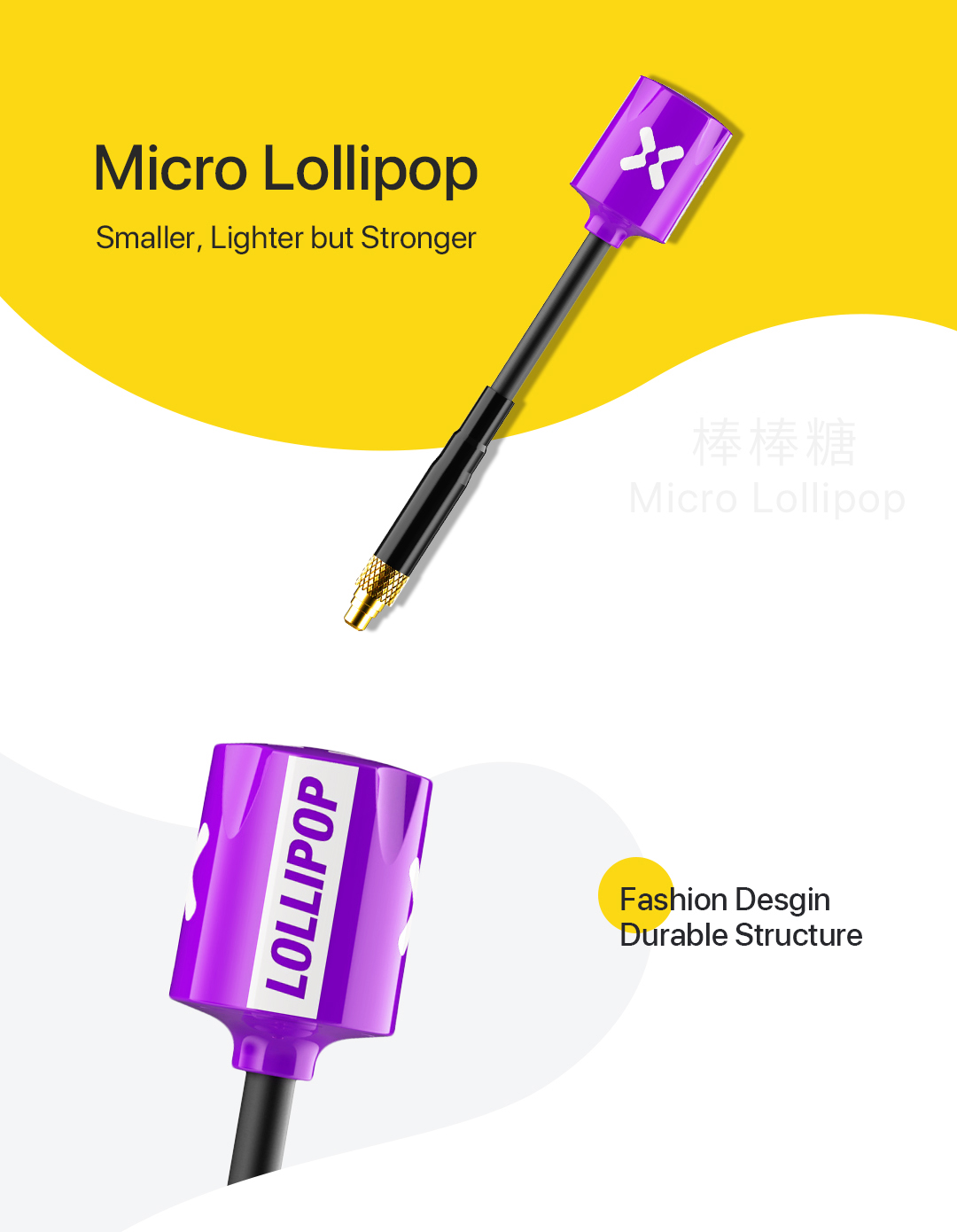

Why choose Foxeer Micro Lollipop Antennas?
- Compact Design: Despite its small size, the antenna delivers a strong and reliable signal.
- High Efficiency: With up to 98% efficiency and low SWR (1.06), you’re guaranteed stable signal reception and excellent coverage.
- Various connectors: Available in SMA, RPSMA, MMCX, UFL, and more, making it easy to connect to different FPV devices.
- Optimized for FPV: Frequency range of 5.5-6GHz and 2.5dBi gain ensures better signal quality and reception at distance.
- Outstanding Polarization: Choose between RHCP or LHCP for perfect compatibility with your FPV setup.
Key Benefits:
- High Gain – 2.5dBi gain for strong, reliable signal reception.
- High Efficiency – Up to 98% radiation efficiency for better image quality.
- Wide Bandwidth – Coverage from 5.5GHz to 6GHz, ideal for FPV racing.
- Compact and Lightweight – Easy to mount on your drone without adding extra weight.
- Polarization Options – RHCP or LHCP to suit your needs.
Technical Specifications:
- Center Frequency: 5.7GHz
- Gain: 2.5dBi

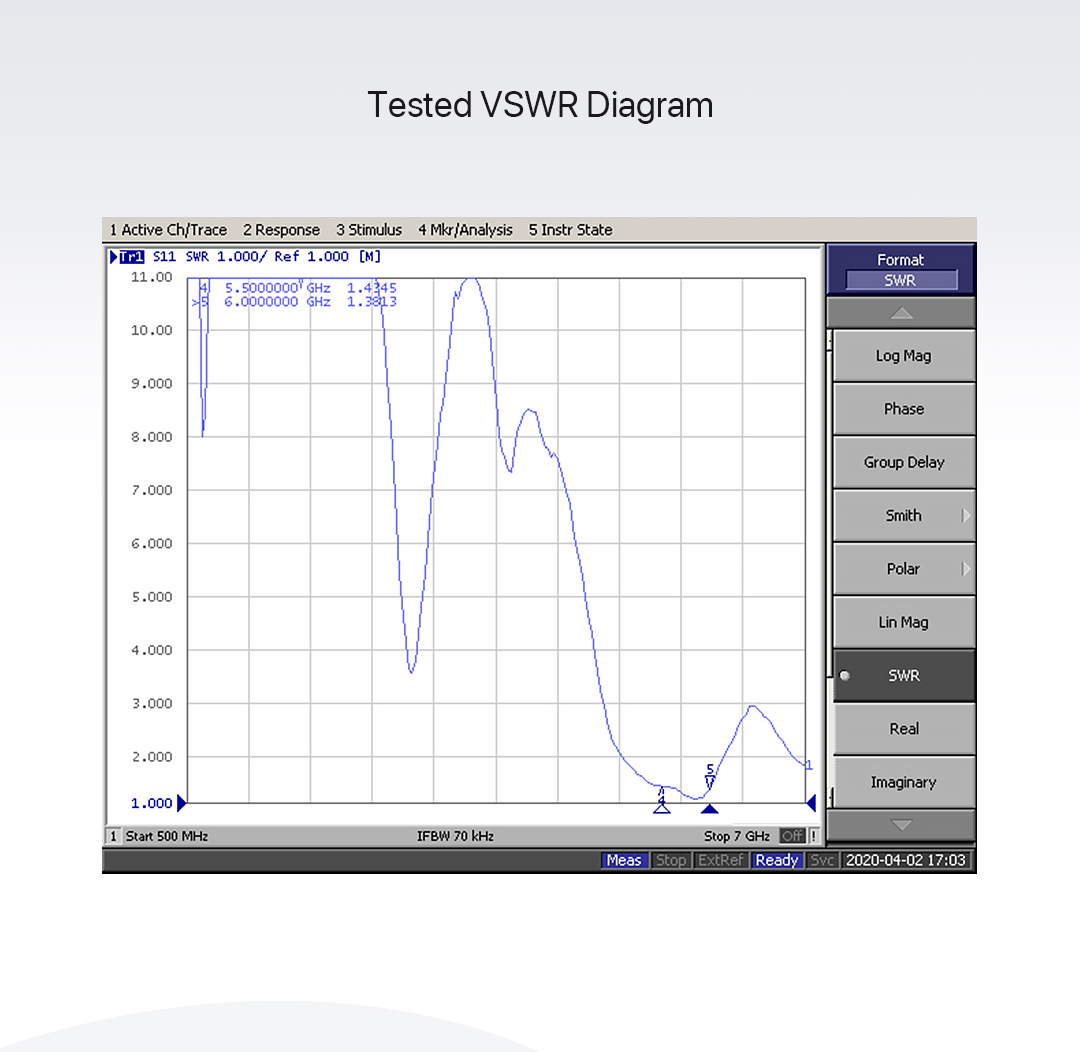

- SWR: 1.06 at center frequency
- Bandwidth: 5.5GHz~6GHz
- Radiation Efficiency: 98%
- Cable Length: 51mm

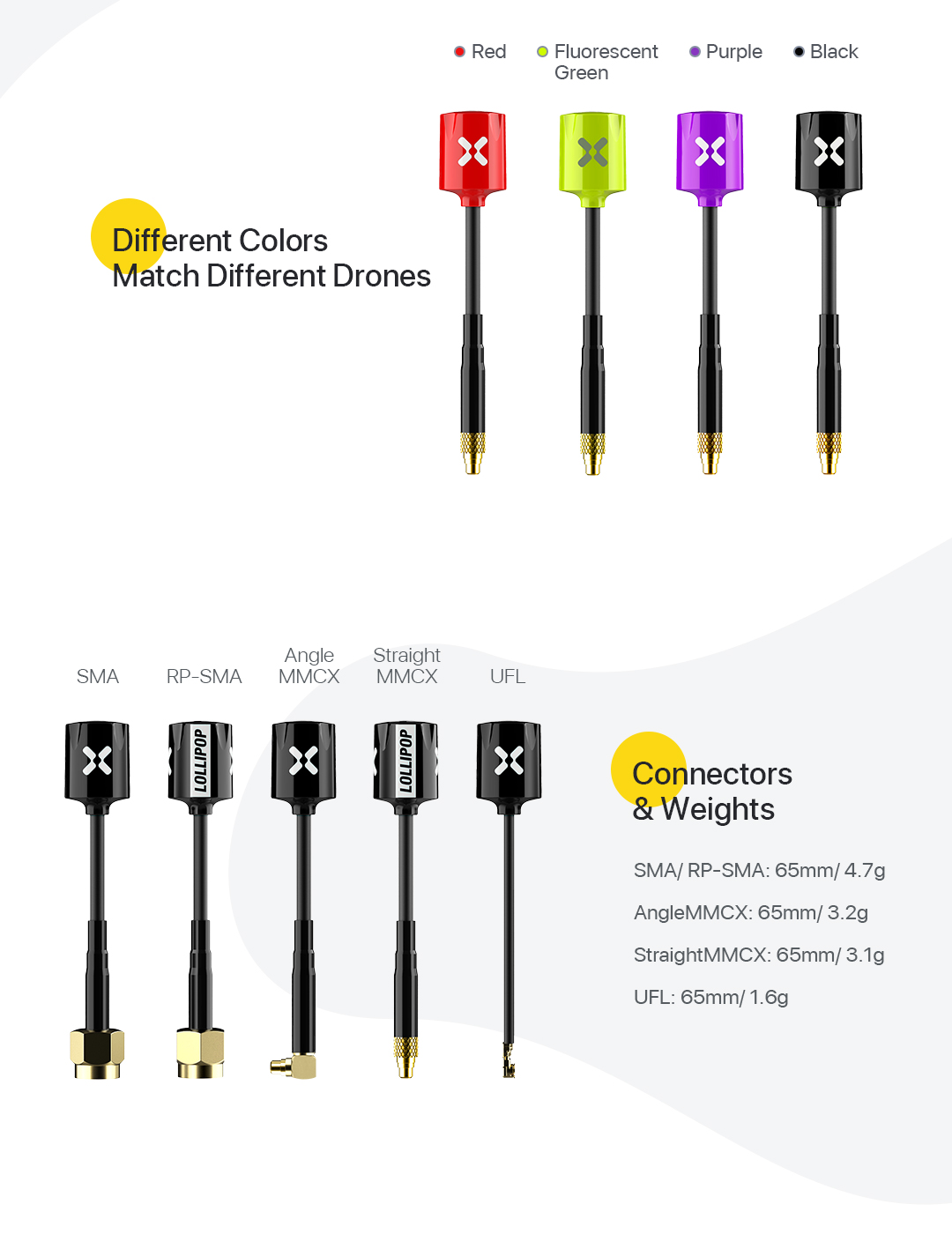

- Connector: SMA/RPSMA/StraightMMCX/AngleMMCX/UFL/UFL Tube
- Case Material: PC+ABS
- Weight: SMA/RPSMA: 4.7g, StraightMMCX: 3.1g, AngleMMCX: 3.2g, UFL: 1.6g
- Quantity: 2 antennas per pack
