FlashHobby 3110 FPV Racing Motor

2139/900
Not rated
FlashHobby

FlashHobby 3110 FPV Racing Motor - High-Performance Racing Motor for FPV Drones

Get ready for ultimate power and control in every race with the FlashHobby 3110 FPV Racing Motor! Designed for serious drone racing, this motor delivers extreme thrust, high speed, and exceptional durability. The FlashHobby 3110 takes your racing to the next level with its high-performance capabilities, powerful thrust, and precise engineering. Whether you're competing at the highest level or pushing your drone to the limit, this motor won’t let you down.


  • $55,64 incl. VAT
  • (2) In stock
$45,98
  • Variant

Parameters

Category: Drone Motors
Print
Garance doručení
nepoškozeného zboží
Přes 3000 výdejních míst
po celé ČR


Description

Equipped with 52H-grade magnets, a rugged CNC-machined 6061-T6 aluminum bell, and premium NSK bearings, the FlashHobby 3110 ensures smooth operation and long-lasting reliability. With a 900KV rating and up to 1410W maximum power, this motor is perfect for larger FPV drones that use 9-10 inch props. Get ready for powerful launches, sharp turns, and top-notch stability during every flight.

Key Benefits:

  • Maximum Thrust: With up to 3600 g of thrust, the FlashHobby 3110 ensures powerful acceleration and quick maneuvers.
  • Durable Construction: CNC-machined 6061-T6 aluminum bell and heat-resistant features ensure long-lasting performance even under extreme conditions.
  • Smooth Operation: High-speed NSK bearings provide smooth, quiet, and reliable motor performance.
  • High Power Output: With up to 1410W at 25V (6S), this motor ensures peak performance for all your FPV racing needs.
  • Versatile Compatibility: Recommended for 9-10 inch props, offering stability and control for racing drones.

Specifications:

  • Weight: 85 g (including cables)
  • Motor Size: 37.1 x 27 mm
  • Shaft Diameter: 5.0 mm
  • Motor Mount: 19x19 mm (M3x4)
  • Configuration: 12N14P (12 poles, 14 windings)
  • Motor Cable: 16#AWG, 300 mm
  • KV Value: 900KV (or customized)
  • Recommended Prop Size: 9-10 inch
  • Max Thrust: 3600 g
  • Voltage: 25V (6S)
  • Recommended ESC: 50A~60A
  • Max Power: 1410 W
  • Recommended Prop: HQ9050-3R, GF1050-3R 9-10 inch props

Specifications

Product Name FlashHobby 3110 FPV Racing Motor
Weight 85g (including the cables)
Motor Size 37.1 x 27mm
Shaft Diameter 5.0mm
Motor Mount 19*19mm(M3*4)
Configuration 12N14P
Motor Cable 16#AWG 300mm
KV Value 900KV or customed KV
Max pull 3600g
Volts 25V(6S)
Suggested ESC 50A~60A
Maximum Power 1410W
Suggested Prop HQ9050-3R, GF1050-3R prop


Recommend: 9~10 inch prop application

A3110 RC Brushless Drone Racing Motor for FPV Drone,X Class Drone

3110 FPV Racing Motor Features:

  • 52H Level Magnet
  • Precision Balanced Rotor Test
  • 14P12N High Torque Motor Design
  • CNC 6061-T6 Aluminum Bell
  • High RPM Imported NSK-5x11x5mm Bearing
  • High Temperature Resistant Copper Wire Winding

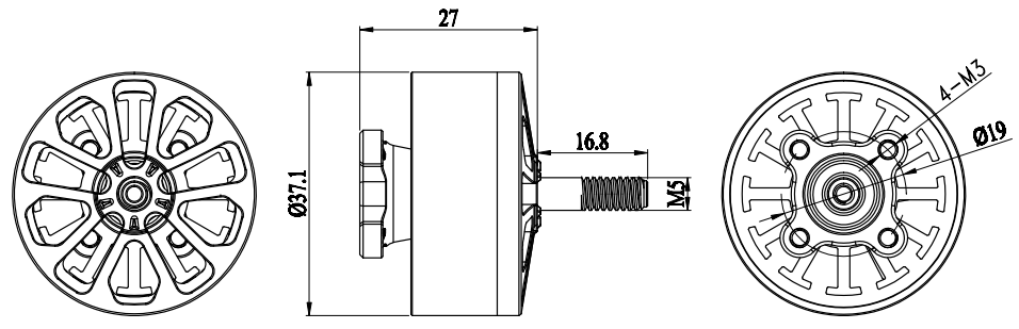

3110-motor-drawing_588724

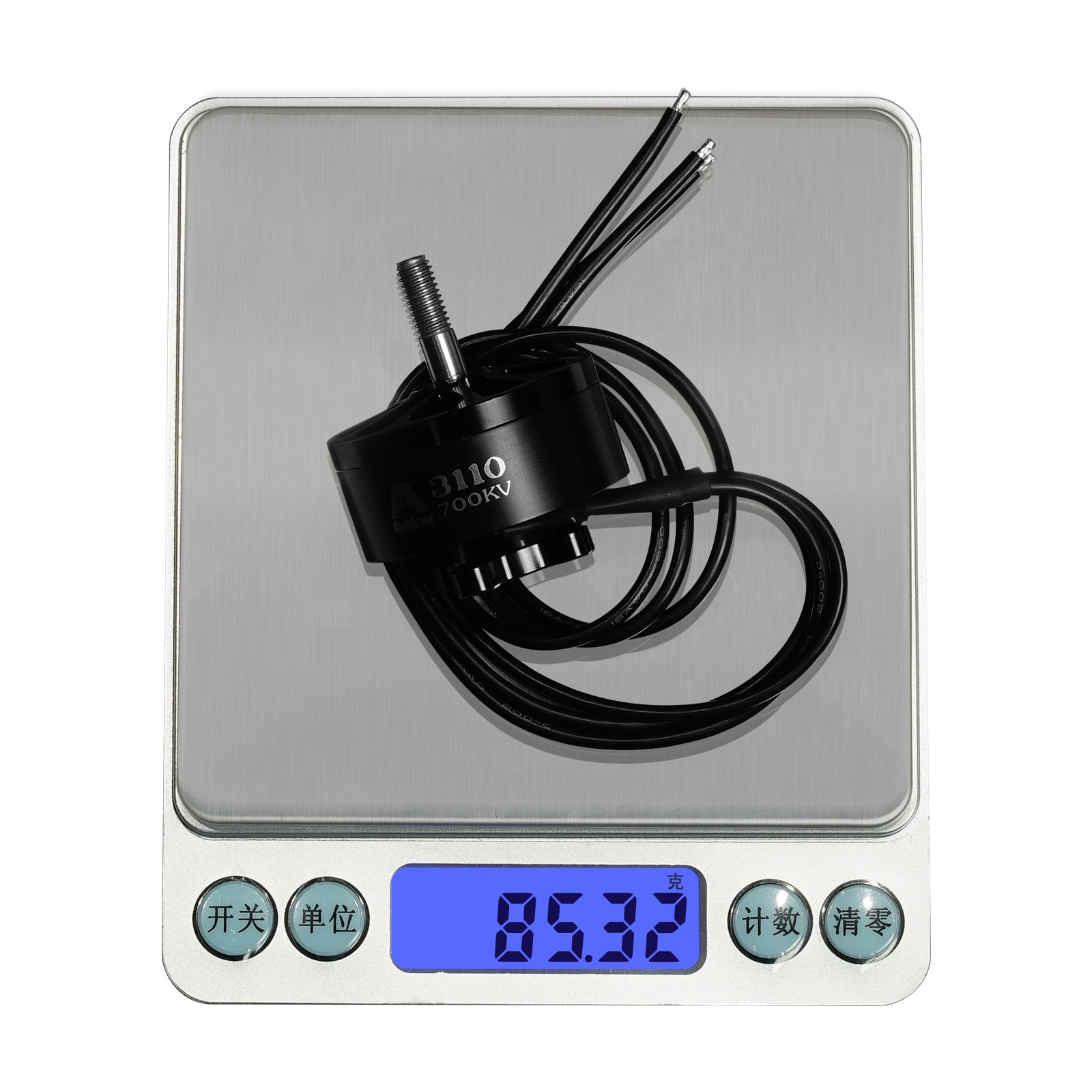

5-min-5721622

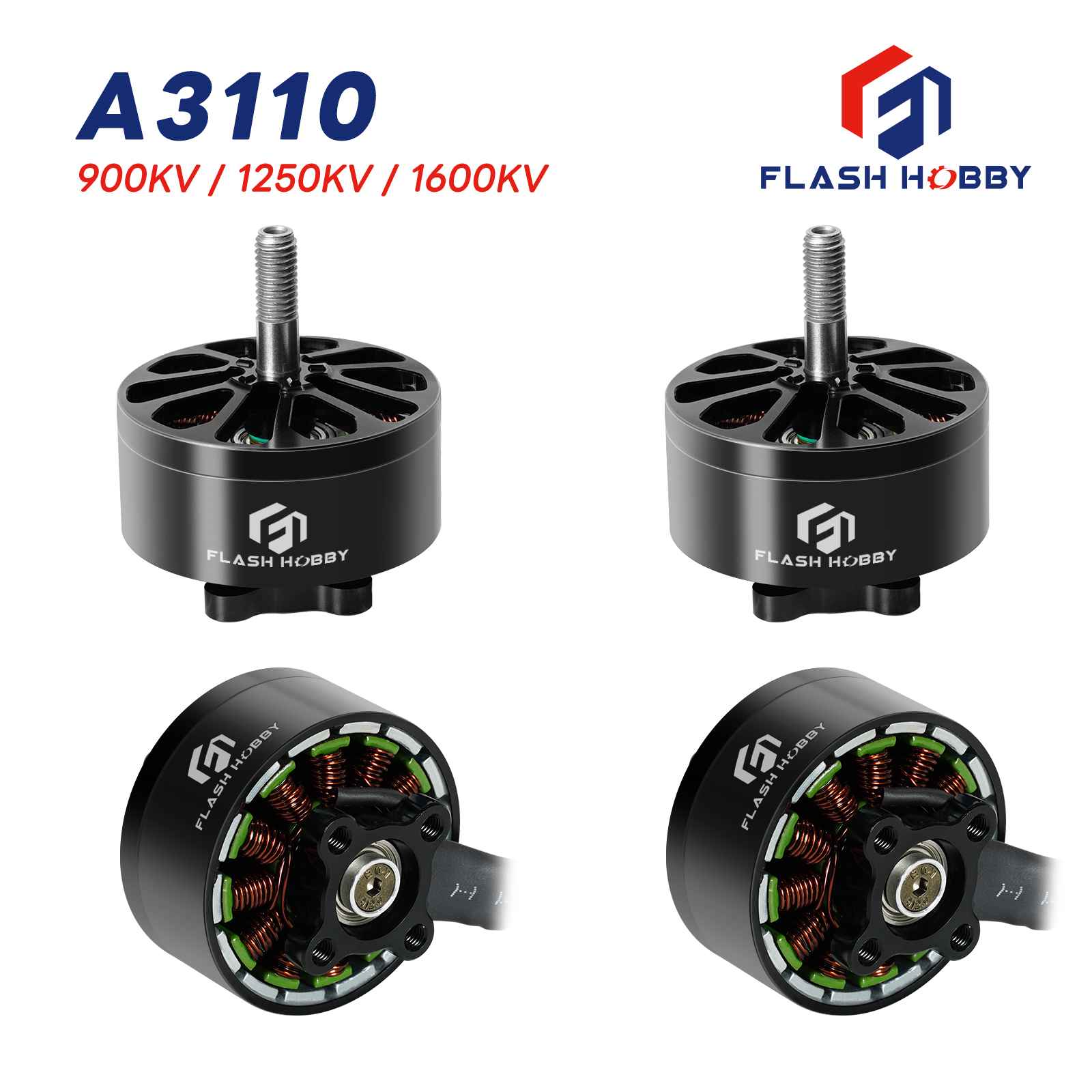

1---2--1--1493519
