FlashHobby 2810 FPV Racing Motor

2136/900
Not rated
FlashHobby



FlashHobby 2810 FPV Racing Motor - High-Performance Racing Motor for FPV Drones

Take your racing skills to the next level with the FlashHobby 2810 FPV Racing Motor! Engineered for serious drone racing enthusiasts, this motor delivers unmatched power, smooth operation, and exceptional durability. Whether you’re flying in high-stakes competitions or pushing your drone to its limits, the FlashHobby 2810 ensures maximum performance and precision in every flight.


  • $51,24 incl. VAT
  • (4) In stock
$42,35
  • Variant

Parameters

Category: Drone Motors
Print
Garance doručení
nepoškozeného zboží
Přes 3000 výdejních míst
po celé ČR


Description

With a 12N14P design, precision CNC-machined 6061-T6 aluminum bell, and high-speed NSK/NMB bearings, expect unparalleled reliability and torque. The FlashHobby 2810 motor provides up to 2465 g of thrust when powered by a 24V (6S) battery, and is ideally paired with 7-8 inch props for exceptional control and speed.

Key Benefits:

  • Unmatched Performance: Delivers up to 2465 g of thrust, perfect for FPV racing and freestyle flying.
  • Durability & Reliability: CNC-machined aluminum bell from high-grade 6061-T6 for long-lasting performance.
  • Efficient Power: 52H-grade magnets and high-temperature resistant copper wire winding for optimum power output and heat resistance.
  • Smooth Operation: High-quality NSK/NMB bearings provide smooth and quiet motor performance.
  • Versatile Compatibility: Recommended for use with 7-8 inch props, making it ideal for various FPV drone applications.

Specifications:

  • Weight: 67.6 g (including cables)
  • Motor Size: 33.6 x 40.8 mm
  • Shaft Diameter: 4.0 mm
  • Motor Mount: 19x19 mm (M3x4)
  • Configuration: 12N14P (12 poles, 14 windings)
  • Motor Cable: 18#AWG, 220 mm
  • KV Value: 1100KV (or customized)
  • Recommended Prop Size: 7-8 inch
  • Max Thrust: 2465 g
  • Voltage: 24V (6S)
  • Recommended ESC: 40A~60A
  • Max Power: 934.9 W
  • Recommended Prop: GF7043-3R 7-8 inch props

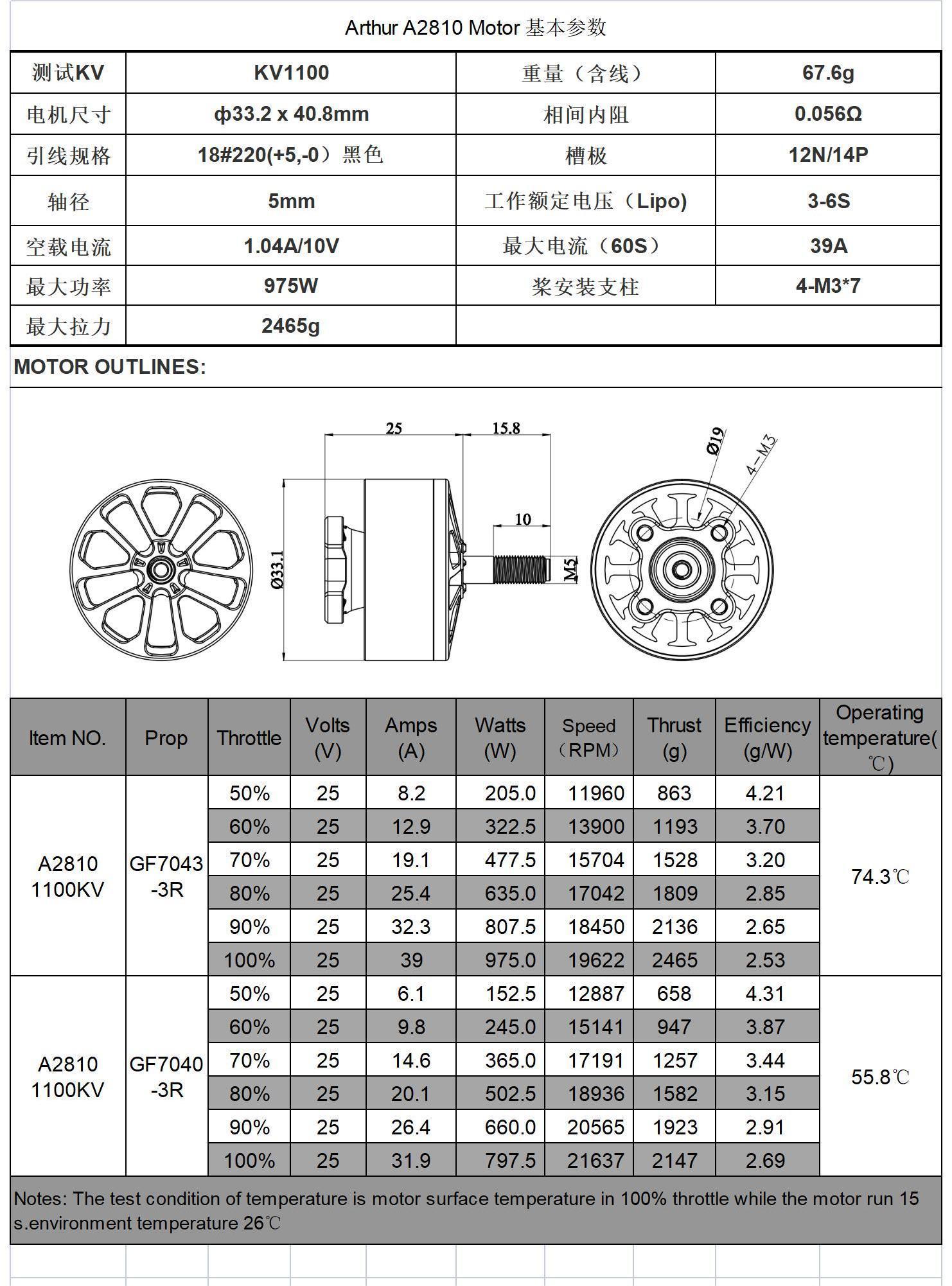

Specifications

Product Name 2810 FPV Racing Motor
Weight 67.6g (including the cables)
Motor Size 33.6 x 40.8mm
Shaft Diameter 4.0mm
Motor Mount 19*19mm(M3*4)
Configuration 12N14P
Motor Cable 18#AWG 220mm
KV Value 1100KV or customed KV


Recommend: 7~8 inch prop application

A2810 RC Brushless Motor for FPV Drone,X Class Drone

Features:

  • 52H Level Magnet
  • Precision Balanced Rotor Test
  • 14P12N High Torque Motor Design
  • CNC 6061-T6 Aluminum Bell
  • High RPM Imported(NSK/NMB) Bearing
  • High Temperature Resistant Copper Wire Winding
  • A2810KV 1100KV Motor Specification
  • Max pull：2465g
  • Volts：24V(6S)
  • Suggested ESC: 40A~60A
  • Maximum Power：934.9W
  • Suggested Prop: GF7043-3R inch prop

a2810-1100kv-18-220------------k_258166
